From Battery Monitoring to Battery Condition & Infrastructure Monitoring Systems

2. Limitations of Conventional Battery Monitoring

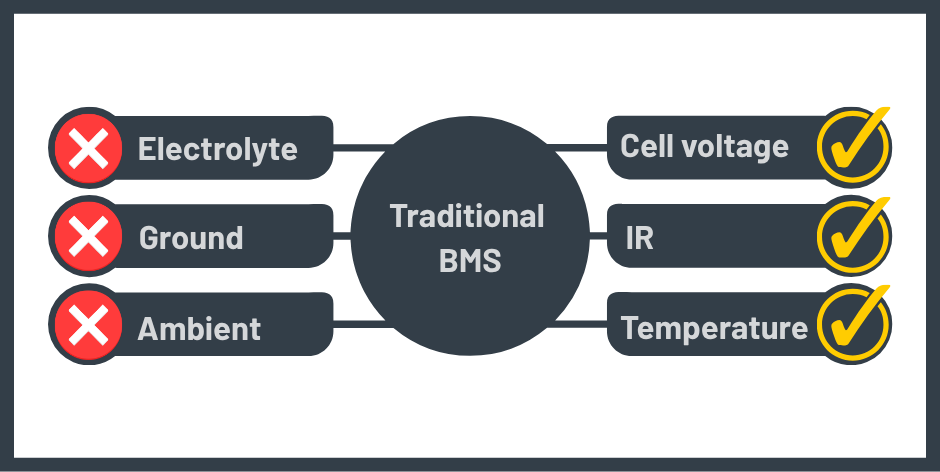

Traditional BMS implementations provide essential visibility but operate within a limited framework. Typical monitored parameters include cell voltage, internal resistance, battery temperature, and string voltage and current.

These parameters are effective for detecting imbalance, tracking aging trends, and identifying obvious faults. However, several critical conditions remain outside this scope.

For example, insulation degradation may develop without immediate voltage deviation. Electrolyte loss in NiCd systems cannot be inferred directly from electrical values. Gas accumulation is not reflected in standard battery measurements. Ambient conditions influencing battery aging are often not included.

This creates a gap between what is measured and what actually affects system reliability.

3. Extension to Condition Monitoring

The first level of expansion is the interpretation of measured data in a broader operational context.

Rather than evaluating parameters individually, the system provides a more complete picture of battery condition through combined observation of voltage distribution across cells, internal resistance trends over time, temperature behavior at both cell and ambient level, and operational patterns such as charge and discharge cycles.

This layer does not introduce new measurement types, but it improves how existing data is understood within system operation.

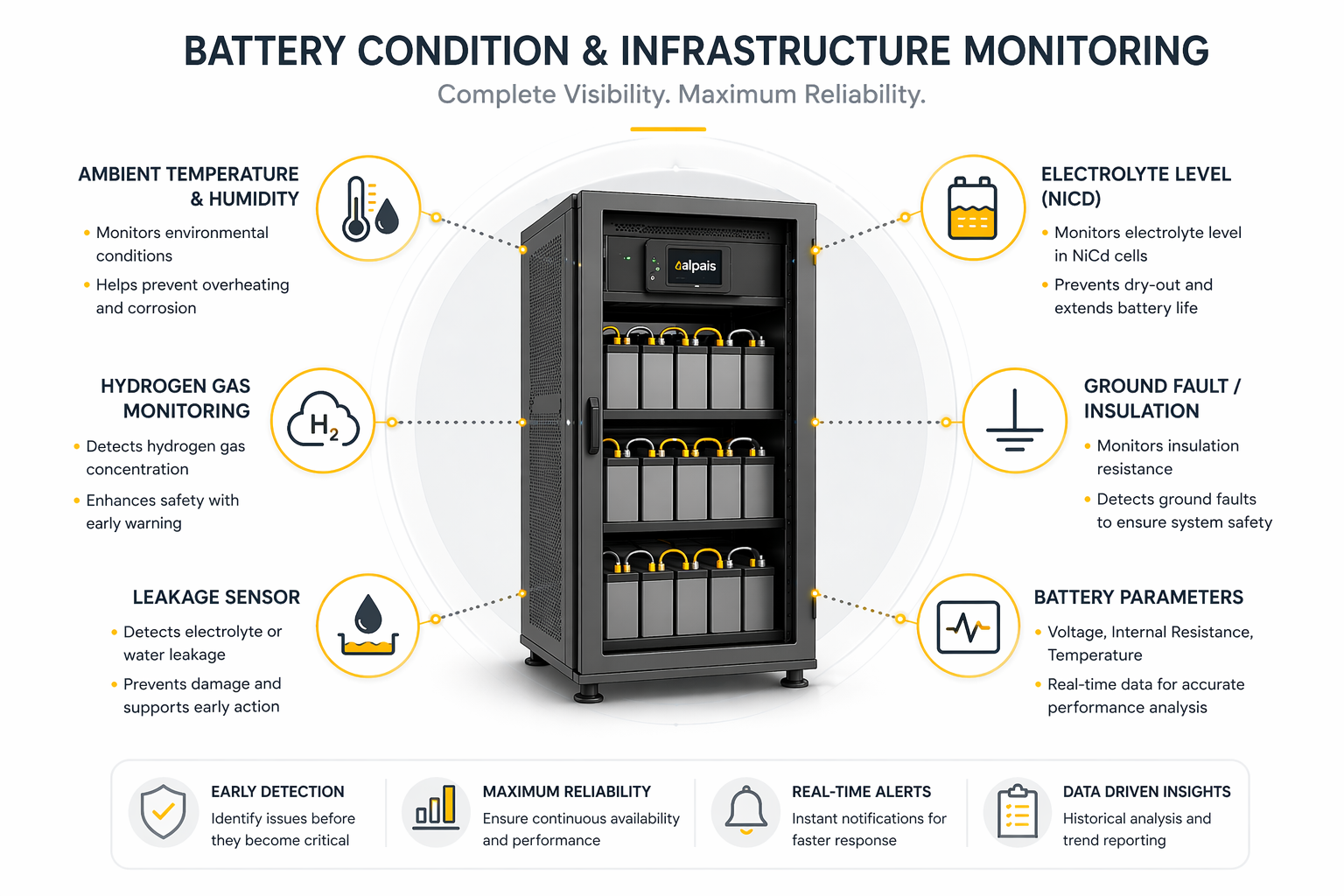

4. Infrastructure Monitoring Layer

The second level of expansion involves integrating parameters that are not directly electrical but are essential for system performance and safety.

4.1 Environmental Conditions

Battery performance is strongly influenced by environmental factors. Ambient temperature, humidity, and ventilation conditions affect aging rate, chemical stability, and operational consistency.

Elevated temperatures accelerate degradation processes, while uneven temperature distribution across a battery bank can lead to non-uniform aging. Monitoring these conditions allows correlation between battery behavior and environmental impact.

4.2 Chemical and Physical Parameters

In NiCd battery systems, specific parameters provide direct insight into internal battery condition.

Electrolyte level monitoring enables detection of liquid loss, which can lead to exposure of active materials and localized overheating. This parameter cannot be derived from voltage or resistance measurements.

Hydrogen gas concentration is another critical factor. During charging, hydrogen is generated, and insufficient ventilation may lead to accumulation. This represents a safety risk at system level rather than a battery-level parameter.

4.3 Electrical Integrity and Safety

Electrical infrastructure plays a key role in system reliability, particularly in industrial DC applications.

Ground fault monitoring provides continuous supervision of insulation between the DC system and earth. This enables early detection of abnormal current paths.

Cell-level leakage measurement complements this by identifying early-stage insulation degradation before it evolves into a system-wide fault.

These parameters extend monitoring from battery condition to overall electrical integrity.

4.4 System-Level Electrical Effects

Certain effects originate from the power system rather than the battery itself but directly influence battery performance.

Ripple current, typically caused by rectifier behavior, introduces an AC component into the DC system. This can increase temperature and contribute to uneven charging conditions.

Including such parameters provides a more accurate representation of operating conditions.

5. Active Stabilization: Voltage Balancing Function

Beyond monitoring, certain system functions contribute to maintaining stable operating conditions.

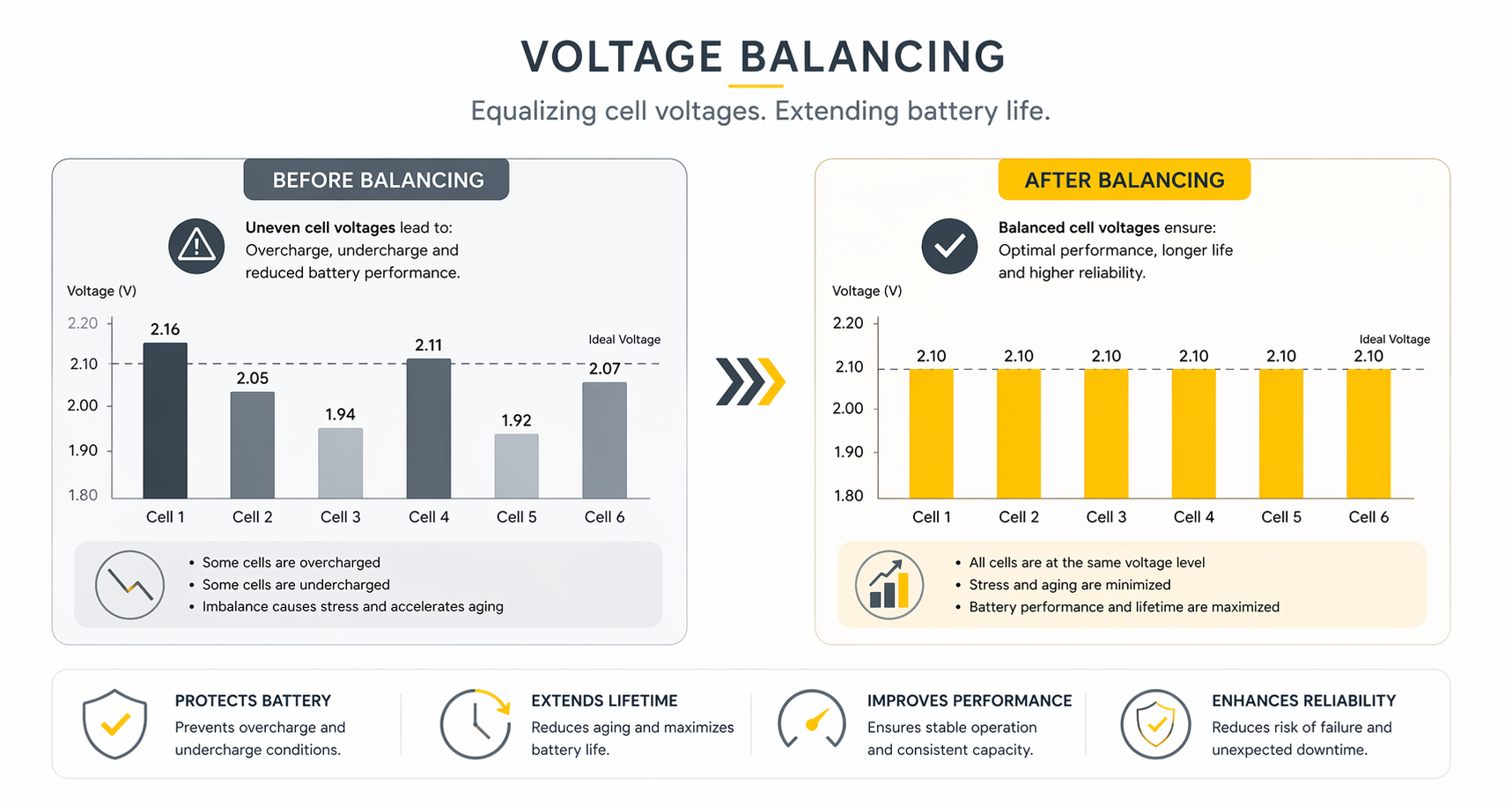

Voltage balancing function addresses cell-to-cell voltage differences within a string. Over time, small variations between cells can accumulate, leading to uneven stress distribution.

This imbalance may result in accelerated aging of specific cells, overcharge or undercharge conditions at cell level, and reduced overall string performance.

Balancing function reduces these differences by equalizing voltage levels across cells, allowing a more uniform operating range.

As a result, voltage distribution across the string becomes more stable, stress on individual cells is reduced, and long-term degradation differences between cells are limited.

This function does not replace monitoring but complements it by actively contributing to system stability.

6. Unified Monitoring Approach

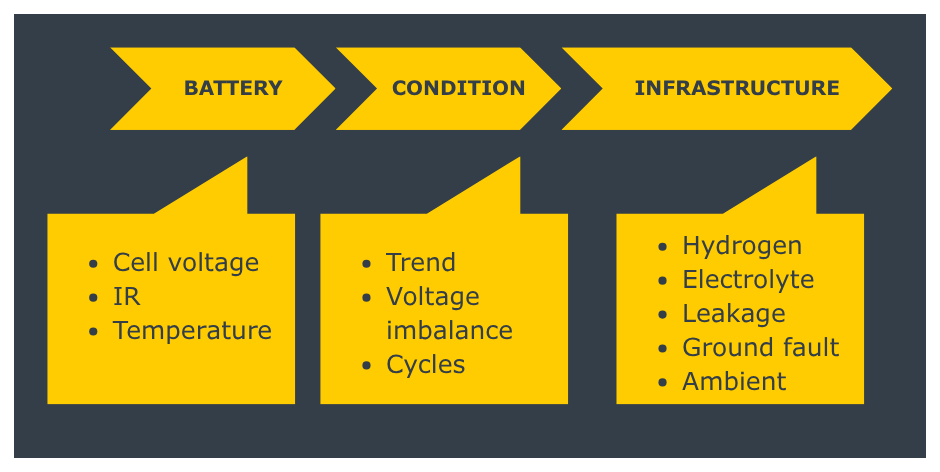

The expanded system structure combines multiple layers of observation.

This structure does not fundamentally change system architecture but broadens the range of observable parameters.

7. Application Across Different Systems

7.1 UPS Systems

In UPS environments, reliability and uptime are the primary concerns. Monitoring focuses on ensuring that batteries are ready to support load during power interruptions.

Extended monitoring improves visibility into environmental effects on battery performance, gradual degradation mechanisms, and system conditions that may not immediately impact voltage.

7.2 Industrial DC Systems

Industrial DC systems operate with high voltage strings and complex grounding structures.

Monitoring of insulation, leakage, and system integrity is essential to prevent fault propagation, maintain stable operation, and ensure safety under continuous operation.

7.3 NiCd Battery Systems

NiCd battery banks introduce additional considerations related to their chemistry and maintenance requirements.

Key monitored aspects include electrolyte level, gas formation, temperature behavior, and leakage paths. These parameters provide direct insight into conditions that cannot be evaluated through electrical measurements alone.
